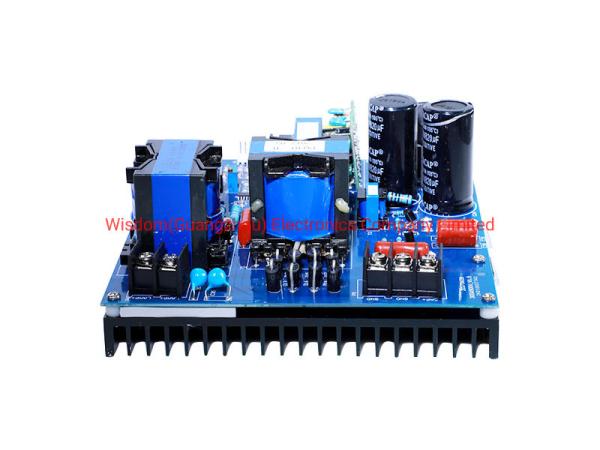

300W Laser Power Supply for Tattoo Removal Equipment (No Pre-ignition)
| Product Name | 300W Laser Power Supply (no pre-ignition) |
| Model Number | LASER-G-S300-N |
| Size | 156*152*67mm |
| Weight | 2kg |
| Input Voltage | AC220V ±20% / AC110V ±10% 50HZ |
| Output Voltage | Max. 850V |
| Output Current | 300A (According to xenon lamp) |
| Output Frequency | 1~6Hz |
| Working Temperature | 1~50 Degree |
| Humidity | ≤85% |
Product Information
This 300W laser power supply is suitable for laser systems, with a
laser handle, to achieve beauty effects such as thin eyebrow
freckle. The power supply uses high-frequency series resonant
switching technology and a variety of protection technologies to
ensure that the power output is efficient, stable, and durable.
Working Theory
Because the laser energy of a specific wavelength reaches the
pigmented tissue of the lesion through the epidermis and dermis
layer, it only acts on the pigment particles, so the epidermis of
the skin has little or no damage, and there is no obvious damage to
the texture of the skin, so the skin will not stay scar. Using the
laser to instantaneously launch high energy to effectively crush
and remove the pigment in the diseased tissue, the corresponding
pigment group expands rapidly and instantly bursts, most or all of
the epidermis pigment groups immediately pop out of the body, and
part of the dermal pigment group can be broken into The tiny
particles that are phagocytosed by macro phages in the body are
swallowed by macrophages and eventually excreted through the
lymphatic system in the body. The chromophore of the diseased
tissue will gradually fade until it disappears, while the
surrounding normal skin tissue will not have any damage due to the
non-absorption of a fixed wavelength laser.
Product Features
- Small size and portable.
- Compatible with any xenon lamp.
- Over voltage protection, temperature protection.
- Dynamic laser, more concentrated energy, stronger selective
destruction of pigment particles;
- With Q-switching system: YAG dual-wavelength pulsed laser
treatment of a variety of refractory pigment diseases.
Attention
- The wrong input voltage must be prevented during use. In
particular, the 220V voltage cannot be connected to the nominal
110V power supply.
- It is required to use two high-voltage cables larger than 2.5
square meters to connect the power supply with xenon lamps, power supply and capacitors.
- In the layout of the whole machine, strong electric wires should be
separated from the weak signal lines to reduce interference.
- Please keep the environment dry and clean to avoid high voltage
leakage.
- In the complete layout, the power must be placed in a
well-ventilated location.
FAQ
1. Are you trading company or manufacturer ?
Answer: We are manufacturer.
2. How long is your delivery time ?
Answer: Small order less than 10 days, large quantity less than 30
days; customized products 30 working days.
3. Which way to deliver the goods?
Answer: usually by DHL
4. Do you provide sample? is it free ?
Answer: We provide sample, it is not free.
5. What is your payment terms?
Answer: T/T or Western Union
6. How long is the warranty?
Answer: For electronic products is one year from delivery date.
7. Can you design control system? is it free?
Answer: We always customize system or power supply, it is free for
special order.
8. Could we download program if its function changed?
Answer: For new program, we can teach you how to download to board
yourself, but it is not a commitment to every customer.
