Quality first, customer first and credit-based.
5 Years
| Ask Lasest Price | |
| Brand Name : | Wisdom |
| Model Number : | LASER-G-S300 |
| Certification : | RoHS, ISO9001, CE |
| Price : | US $100-150/ Piece |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000PCS/Year |
| Delivery Time : | 5~30 work days |
300W Classic Laser Power Supply for Anti-Wrinkle and Tattoo Removal
| Product Name | 300W Laser Power Supply (no pre-ignition) |
| Model Number | LASER-G-S300 |
| Size | 200*152*99mm |
| Weight | 2kg |
| Input Voltage | AC220V ±20% / AC110V ±10% 50HZ |
| Output Voltage | Max.950V |
| Output Current | 300A (According to xenon lamp) |
| Output Frequency | 1~6Hz |
| Working Temperature | 1~50 Degree |
| Humidity | ≤85% |

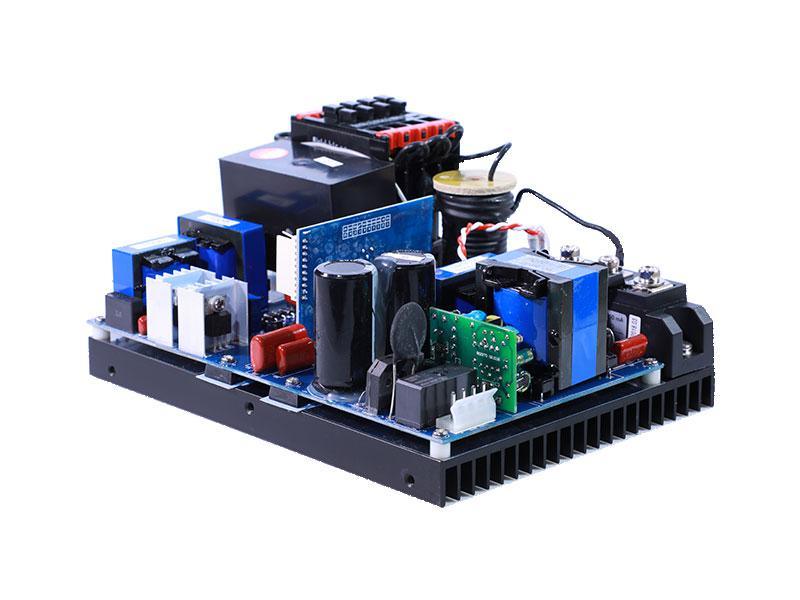

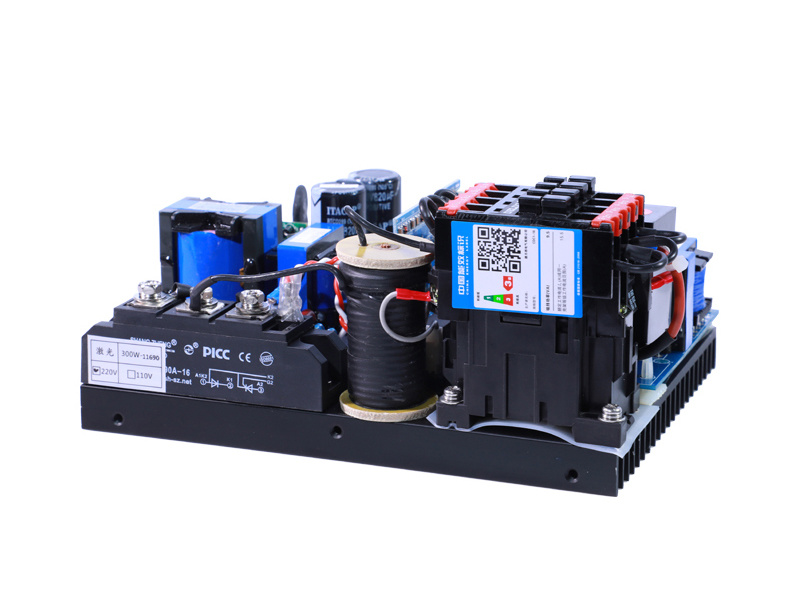

Detail Images
Working Theory
Because the laser energy of a specific wavelength reaches the
pigmented tissue of the lesion through the epidermis and dermis
layer, it only acts on the pigment particles, so the epidermis of
the skin has little or no damage, and there is no obvious damage to
the texture of the skin, so the skin will not stay scar. Using the
laser to instantaneously launch high energy to effectively crush
and remove the pigment in the diseased tissue, the corresponding
pigment group expands rapidly and instantly bursts, most or all of
the epidermis pigment groups immediately pop out of the body, and
part of the dermal pigment group can be broken into The tiny
particles that are phagocytosed by macro phages in the body are
swallowed by macrophages and eventually excreted through the
lymphatic system in the body. The chromophore of the diseased
tissue will gradually fade until it disappears, while the
surrounding normal skin tissue will not have any damage due to the
non-absorption of a fixed wavelength laser.
Product Features
- More efficiency and stable
- Small size and portable.
- Compatible with any xenon lamp.
- Over voltage protection, temperature protection.
Attention
- The wrong input voltage must be prevented during use. In
particular, the 220V voltage cannot be connected to the nominal
110V power supply.
- It is required to use two high-voltage cables larger than 2.5
square meters to connect the power supply with xenon lamps, power
supply and capacitors.
- In the layout of the whole machine, strong electric wires should be
separated from the weak signal lines to reduce interference.
- Please keep the environment dry and clean to avoid high voltage
leakage.
- In the complete layout, the power must be placed in a
well-ventilated location.
The production process
After-Sales Services
- After-sales support. we have professional services to serve you
at any time.If the equipment parts are scattered, manufacturers are
apt to shirk their responsibilities, but we will take full
responsibility for you.
- Communication is efficient and fast. It saves a lot of
communication costs and is more efficient for buyers.
- The price is favorable. Packaged parts also get better prices
than individual parts.
Shipping
FAQ
1. Are you trading company or manufacturer ?
Answer: We are manufacturer.
2. How long is your delivery time ?
Answer: Small order less than 10 days, large quantity less than 30
days; customized products 30 working days.
3. Which way to deliver the goods?
Answer: usually by DHL
4. Do you provide sample? is it free ?
Answer: We provide sample, it is not free.
5. What is your payment terms?
Answer: T/T or Western Union
6. How long is the warranty?
Answer: For electronic products is one year from delivery date.
7. Can you design control system? is it free?
Answer: We always customize system or power supply, it is free for
special order.
8. Could we download program if its function changed?
Answer: For new program, we can teach you how to download to board
yourself, but it is not a commitment to every customer.
|
|
